0.3-3.0mm x1850mm High Quality Rotary Shear Cut To Length Line
Description:
The 0.3-3.0mm x 1850mm High-Quality Rotary Shear Cut To Length Line is a precision-engineered system designed for cutting thin to medium-gauge metal coils into specific lengths with exceptional accuracy and edge quality. Capable of handling materials with thicknesses ranging from 0.3mm to 3.0mm and widths up to 1850mm, this line is ideal for processing materials such as cold-rolled steel, stainless steel, aluminum, and coated metals.
Main Parameters:
| 1. | application | Galvanized Steel,Hot rolled,Cold Rolled |
| 2. | Thickness of coiled plate | 0.3-3.0mm |
| 3. | Width of coiled plate | 1850mm |
| 4. | Line speed | 80m/min |
| 5. | Loading capacity | 30T |
| 6. | Coil I.D | 510/610/720mm |
| 7. | Coil O.D | ≤1850mm |
| 8. | Length accuracy | ±1mm |
| 9. | Direction of feed material | Customized |
| 10. | Power Supply | Customized |
Main Components:
| No. | Name | QTY |
| 1. | Material Platform | 1 set |
| 2. | Loading Coil Car | 1 set |
| 3. | Uncoiler + Peeler | 1 set |
| 4. | 4 Hi Leveler | 1 set |
| 5. | Loop Pit ( Transition table with rubber roller) | 1 set |
| 6. | Side Guide | 1 set |
| 7. | NC Length | 1 set |
| 8. | Hydraulic Shearer | 1 set |

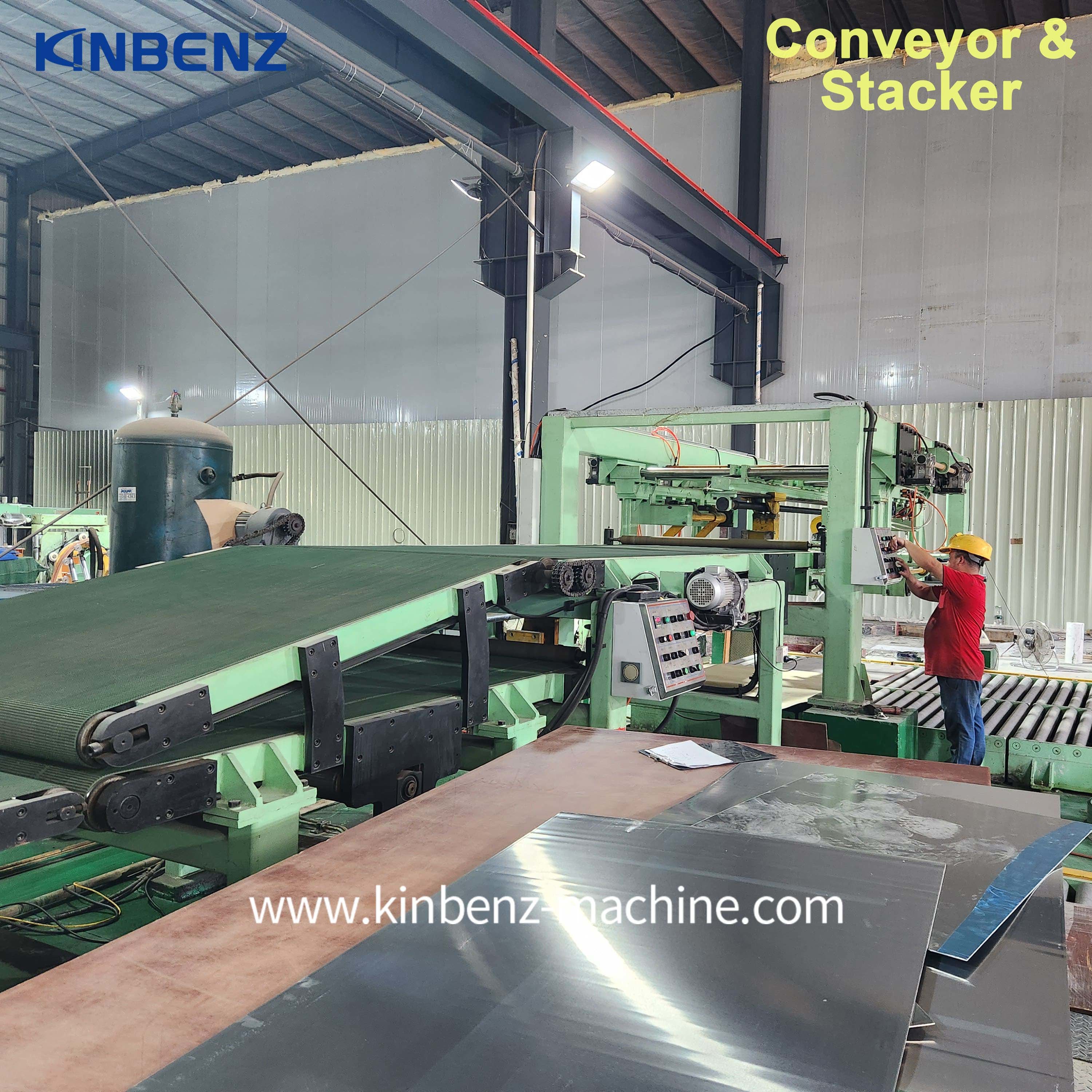

| 9. | Conveyor | 1 set |
| 10. | Stacker | 1 set |
| 11. | Lifting Platform | 1 set |
| 12. | Unloading Coil Car | 2 sets |
| 13. | Hydraulic System | 1 set |
| 14. | Pneumatic System | 1 set |
| 15. | Electrical Control System | 1 set |

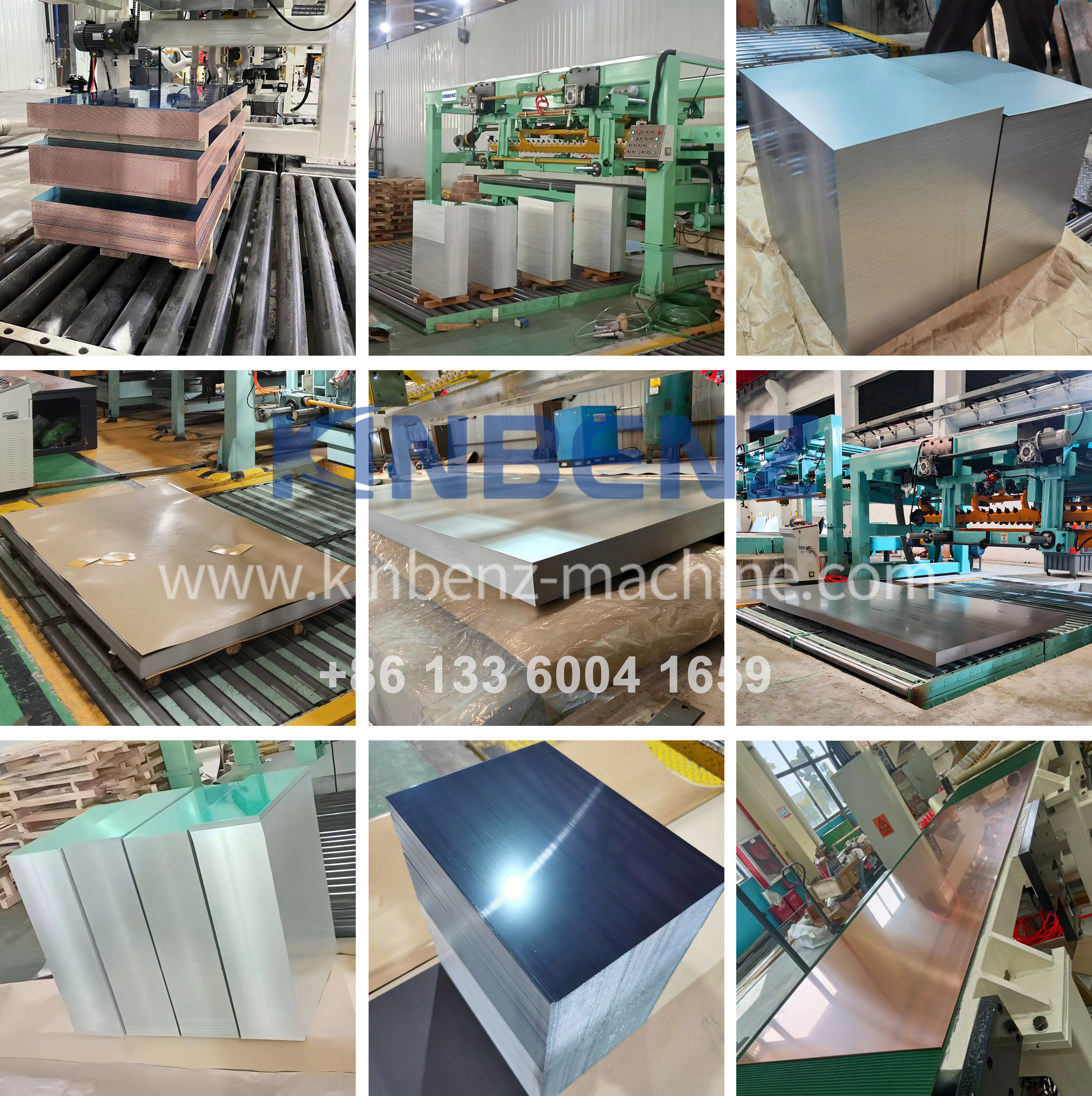

Finished Production:
Featuring advanced rotary shear technology, the system ensures clean, burr-free cuts with minimal material distortion, making it suitable for high-precision applications. Its robust constrction, combined with automated controls and customizable settings, ensures high efficiency, consistent performance, and reduced material waste
Mainly applicable to transformer, motor, home appliances, automobile, building materials, packaging industry, etc.
Our Cut To Length Line Can Be Used For Processing Hot And Cold-Rolled Galvanized, Pre-Painted And Stainless-Steel Coils, As Well As Nonferrous Materials – Aluminium, Copper And Brass Coils, etc.
This cut-to-length line is widely used in industries such as appliances, automotive, construction, and metal fabrication, where precise, high-quality metal sheets are required for production. Its user-friendly interface and reliable operation make it a valuable asset for modern manufacturing facilities.
Advantages
-
Capable of processing a wide range of materials, including cold-rolled steel, stainless steel, aluminum, and coated metals.
-
Handles thicknesses from 0.3mm to 3.0mm and widths up to 1850mm, making it suitable for diverse applications.
-
Fully automated operation with high-speed cutting capabilities, significantly improving production throughput.
-
Ideal for industries such as appliances, automotive, construction, and metal fabrication, where high-quality, precision-cut metal sheets are essential.
-
Built with robust components and designed for heavy-duty use, ensuring long-term reliability and low maintenance requirements.
-
Delivers consistent, high-quality output, enhancing the overall quality of finished products.
